Adjustable Desk Holder for Handheld Fans

live3D print

A custom made holder for handheld fan

[Download files]
Read Handheld fan dock cover

Gallery

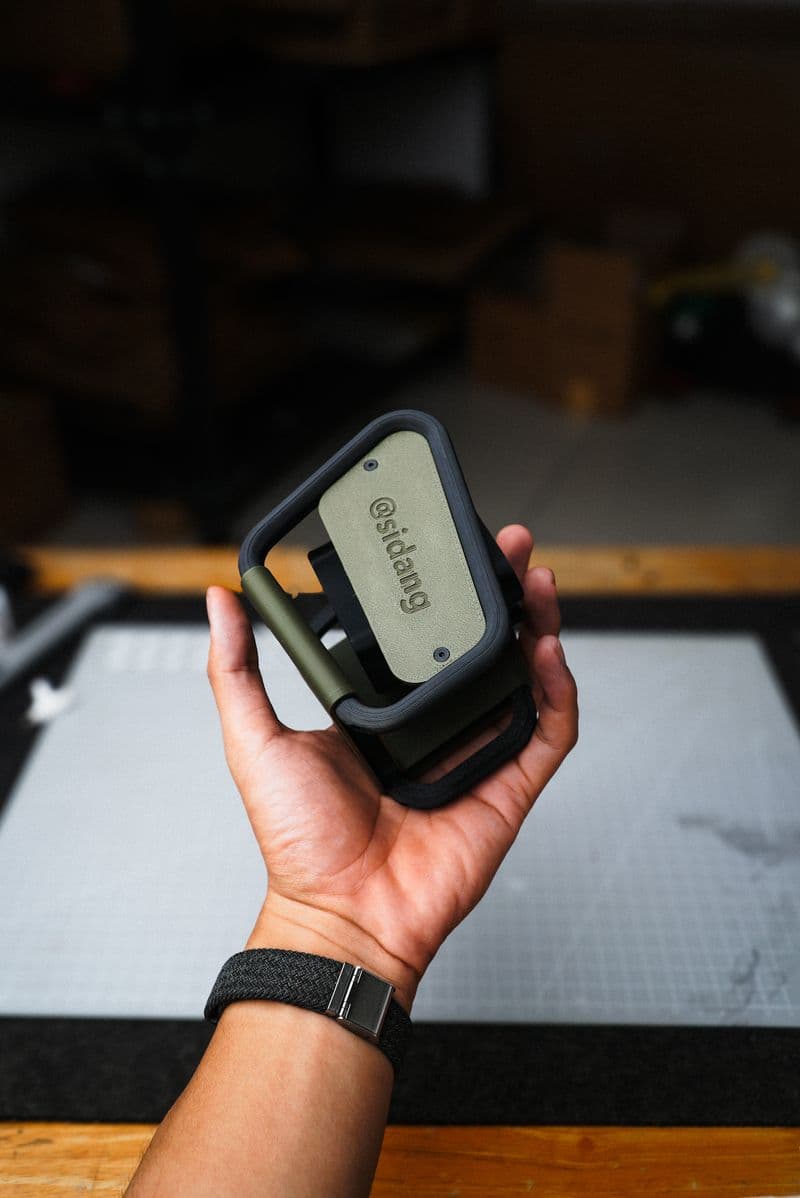

Green version of handheld fan dock

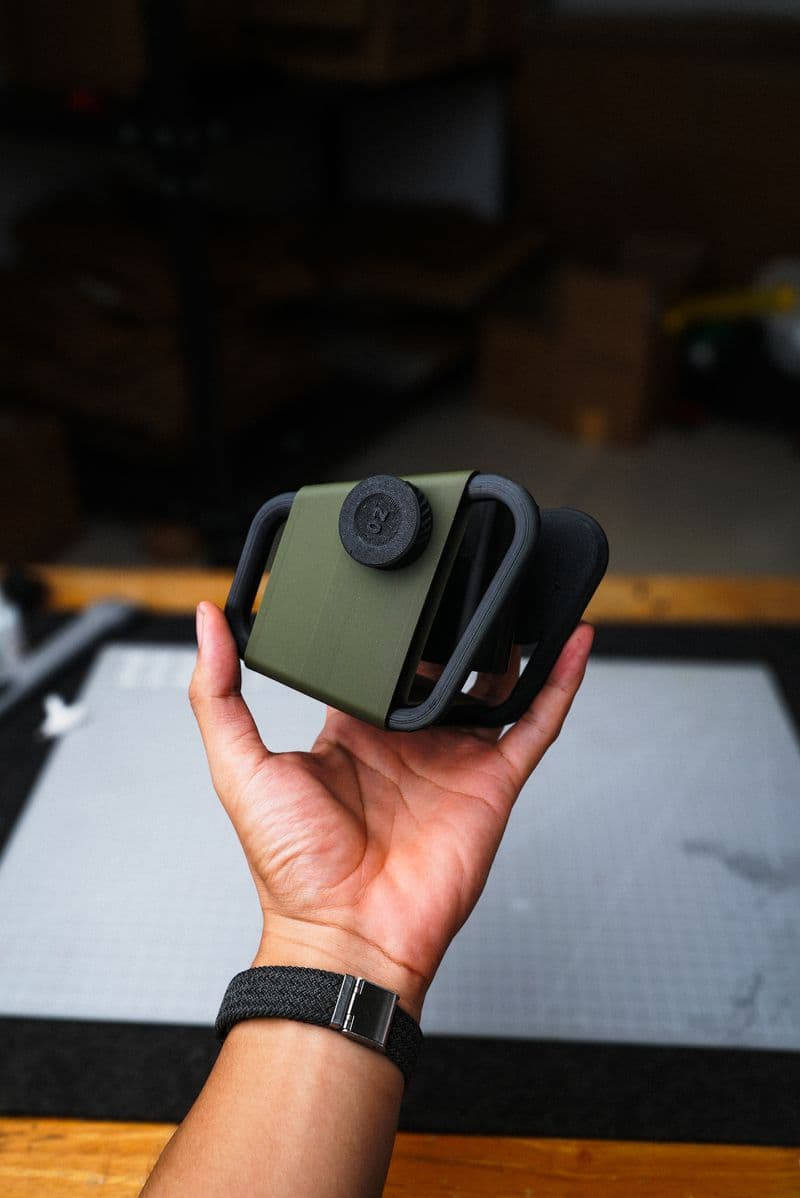

Green version of handheld fan dock

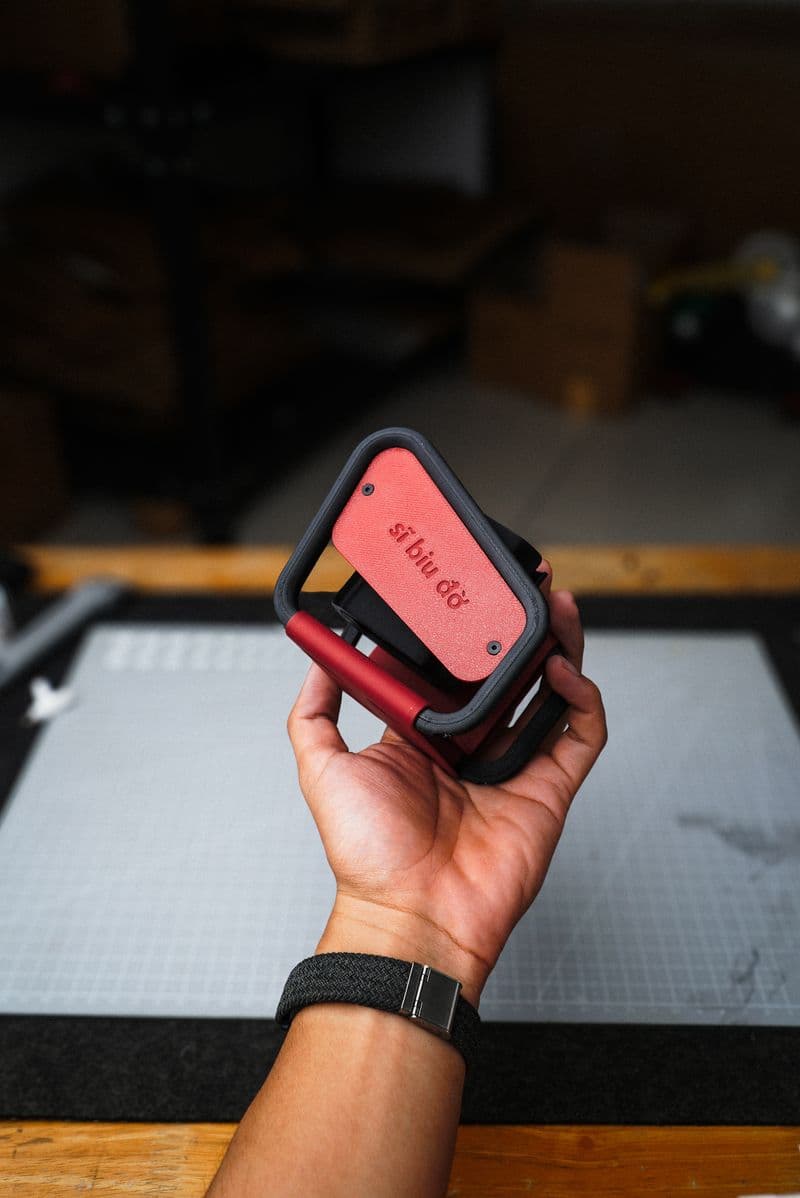

Red version of handheld fan dock

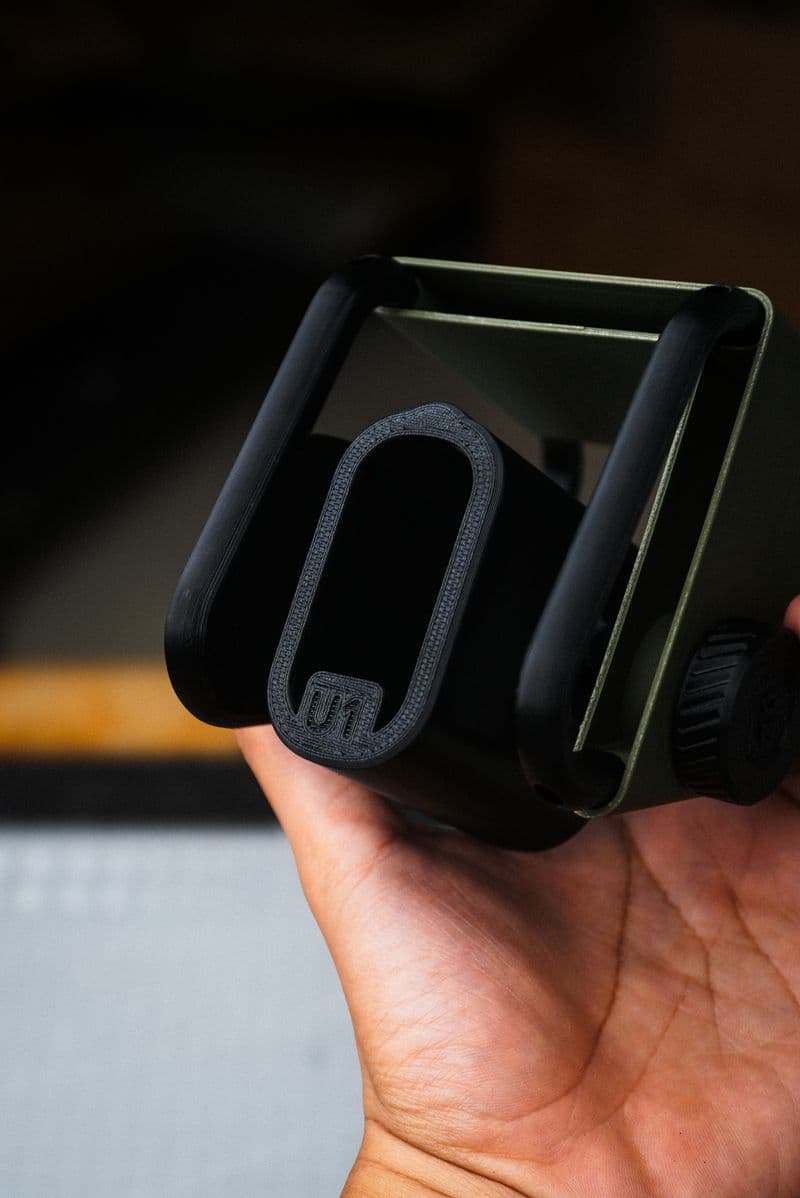

Bottom view of handheld fan dock

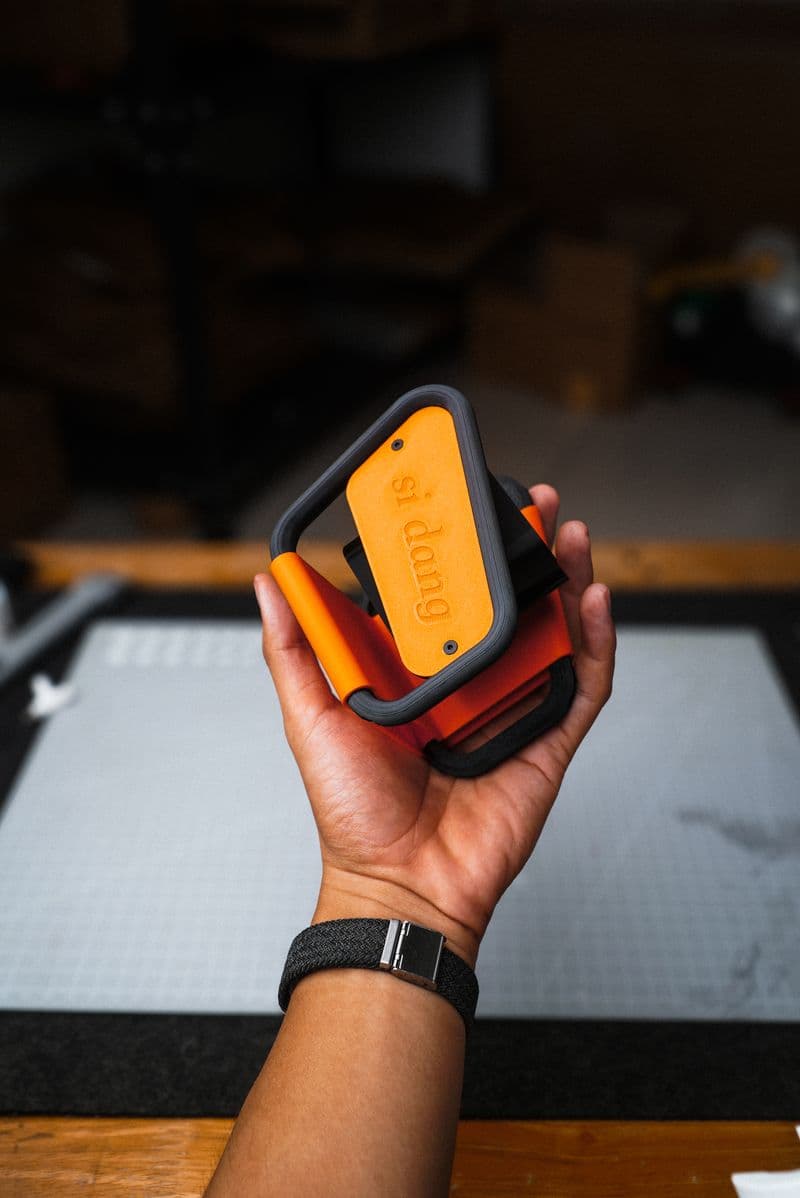

Orange version of handheld fan dock

Build notes

Main features

  • Adjustable fan angle (with angle limited)
  • Separate parts for easy multi-color printing
  • Replaceable decorative nameplate
  • Rubber feet can be added to improve grip and protect the desk

This version currently support:

  • Jisulife Ultra 1
  • Jisulife Ultra 2
  • Jisulife Pro1S
  • Jisulife Life10
  • M1

This model is not guaranteed to fit other handheld fans unless their handle dimensions and shape match supported fans above.

Required hardwares:

  • 2 × M2.5 × 4 mm flat head screws — nameplate
  • 6 × M2 × 8 mm  flat head screws — main frame and core connections
  • 4 × 30 mm rubber or silicone pads — feet [OPTIONAL]

Assembly:

1. Print all components using the provided orientation or 3MF project. 2. Connect the main frame and core components using the 6 M2 × 8 mm screws. 3. Install the fan mounting or pivot components. 4. Adjust the joint tension until the fan holds its angle without excessive force. 5. Attach the nameplate using two M2.5 × 4 mm screws. 6. [Optional] Apply four rubber or silicone pads to the bottom contact points.
